Module 8 - Incorporating Ancillary Equipment and Interfaces

Introduction

This manual provides instructions for the installation and integration of ancillary components and platforms onto an OS6 system. The following ancillaries are detailed within this document:

• GPS Modem (SMS)
• Email Interface
• Camera Interface
• Moxa Dry Contact
• OPC-UA Interface
• REST Interface
• Modbus (Deprecated Interface)
• Connect Agent

These interfaces are not installed by default and will need to be added via the ‘System Install Scheduler’ as required.

Instructions for adding interfaces are described in Module 12.

Once added the next steps in this manual can be followed.

Teltonika - SMS and NTP

Hardware Setup

The OS6 System typically uses a Teltonika RUT955 or RUT956 modem to provide NTP, SMS and data connection capabilities. This section will deal with setting up the hardware for SMS functionality.

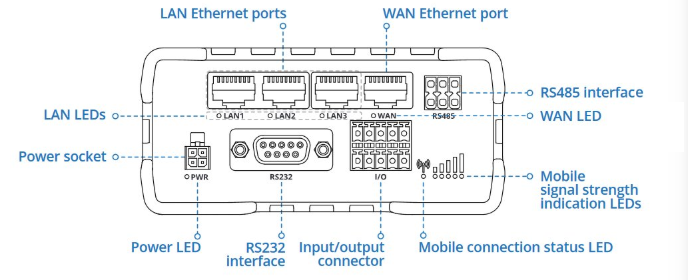

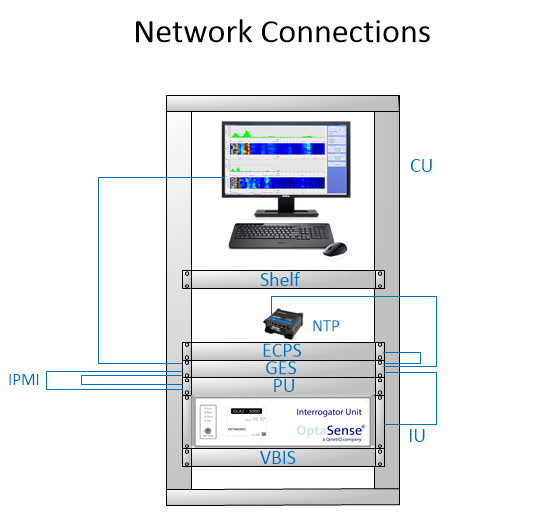

The following schematic shows an overview of the modem’s connectivity. For details regarding the modem’s specification, mounting and power requirements, please refer to the manufacturer’s User Manual.

The Modem is supplied with a 9V DC 4 pin adapter with an IEC Input connection as shown below:

The modem unit needs to have a working sim card inserted, only a standard size SIM card will fit the modem.

There is also an additional SIM slot, this can be used to provide dual redundancy. Slot 1 is to be used for the primary sim card slot.

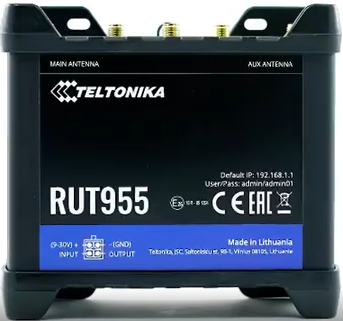

Mobile Main Antenna Connection:

The modem is supplied with a GPS, Mobile (GSM) and WIFI Antenna

which should be installed outside to ensure the best possible signal reception.

Always refer to the system documentation to check if the other Antennas

need to be connected to the unit.

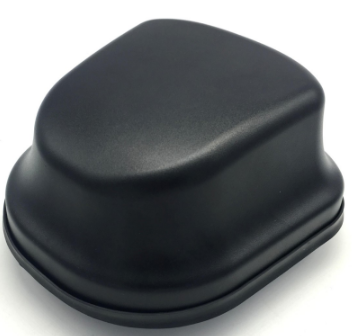

OPN_90132_REV_1 - 4G GSM GPS and Wifi Antenna

In applications where only one sim card is required, the sim card needs to be installed into SIM 1 port and the associated antenna needs to be connected to the Mobile MAIN antenna connector. Note the positions of this connector in under the red arrow.

In applications where two sim cards are installed the second sim card needs to be inserted into SIM 2 port which antenna needs to be connected to Mobile AUX antenna connector highlighted with the blue arrow.

The silver sim insertion / extraction tool is highlighted by the green arrow.

Please note:

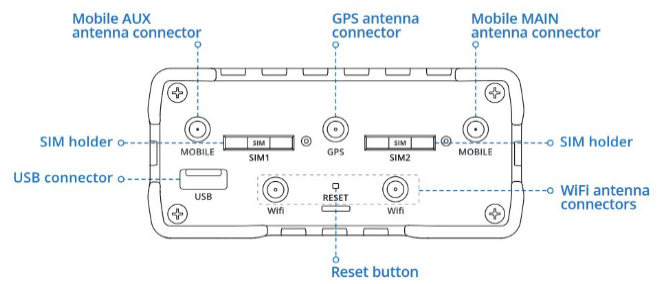

SIM 1’s Sim Card port is on the opposite side to the corresponding Mobile MAIN antenna connector.

SIM 2’s Sim Card port is on the opposite side to the corresponding Mobile AUX antenna connector.

The silver sim insertion / extraction tool is highlighted by the green rectangle.

Colours used to highlight the related ports and connections.

The RUT955 or RUT956 (NTP unit) can now be plugged into the systems Gigabit Ethernet Switch (GES) from the port labelled LAN1 on the NTP (RUT955 or RUT956) unit.

warning

In most setups the system components will be connected through a gigabit switch. Using the Teltonika RUT955 or RUT956 as a network switch is not recommended. The RUT955 and RUT956 is limited to 100 Base T, thus it should not be used in place of a Gigabit switch.

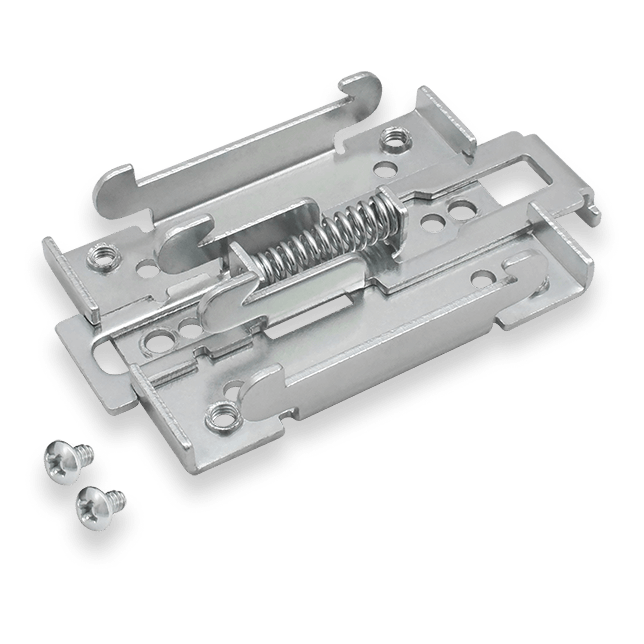

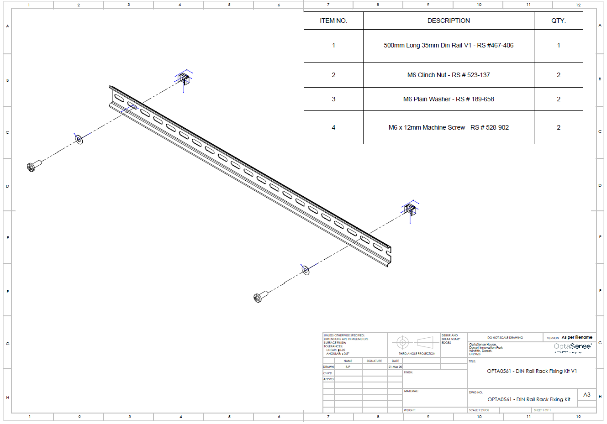

The modem should be installed into the equipment rack using the DIN rail kit which screws onto the rear of the unit in two positions.

The DIN Rail Kit clips onto the DIN Rail Rack Installation Kit.

Software Setup

To get a connection from CU to the modem, both need to be on the same network. On the CU, right-click on the network icon in the bottom right-hand corner of Windows home screen. Select Open Network Internet settings.

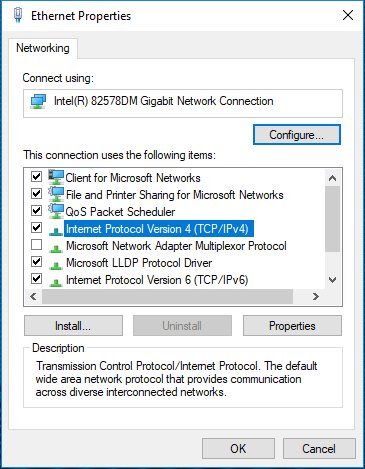

Right-click on Ethernet and select properties.

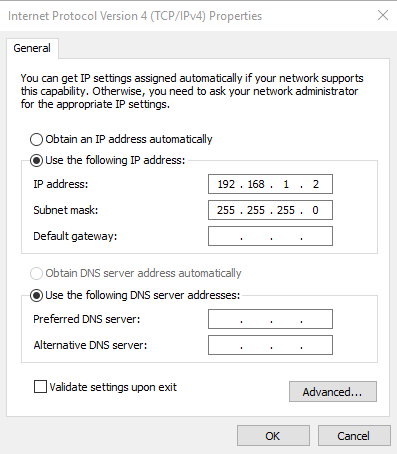

Select Internet Protocol Version 4 (TCP /IPv4) and then select Properties.

Change the IP address to be on the same network as the modem.

The default IP address for the modem is “192.168.1.1”.

For example, if the modem is “192.168.1.1” then the CU’s IP address can be “192.168.1.2”. The Subnet mask can be left as default. Select OK to commit the changes.

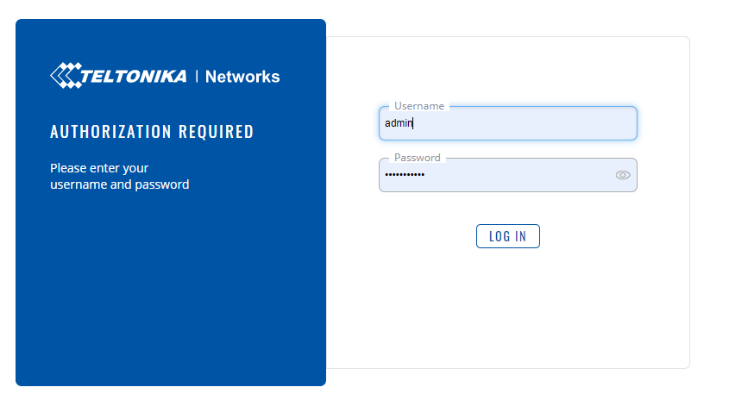

The modem’s interface should now be accessible. To access it, type in an internet browser 192.168.1.1 and press enter. Internet explorer works well . The default login details are Username: admin & unique password is stated on the rear of the unit!

When prompted to change the password, change it to OptaAdmin01

Please note the default password for the units may not be Admin01 as it was in the past.

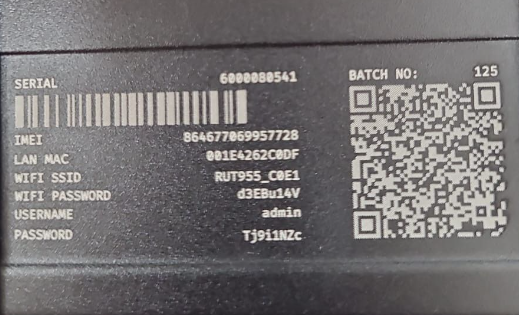

The default password is printed on the rear of the unit and should be recorded for future reference if it is ever required.

To configure the Teltonika for use open go to the mode option and click on the mode until it displays Advanced as shown.

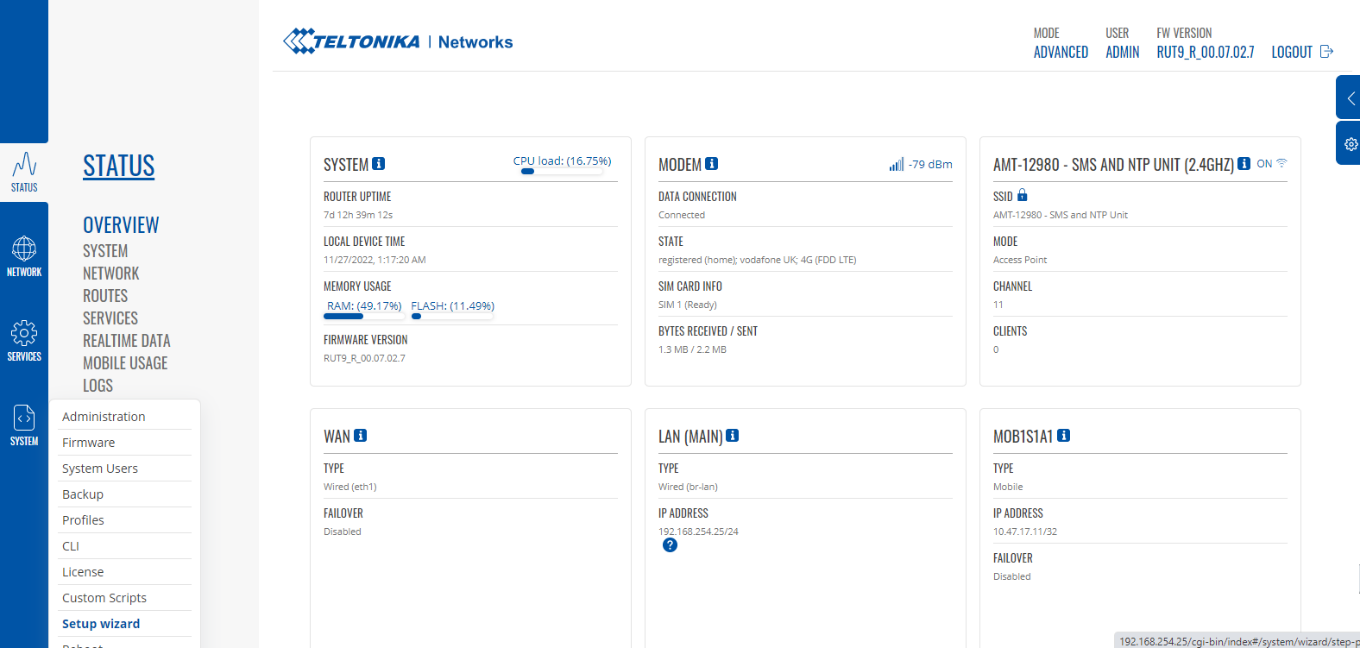

Then navigate to the System tab and select Setup Wizard from the drop-down menu.

Follow the steps described below:

From the System Tab

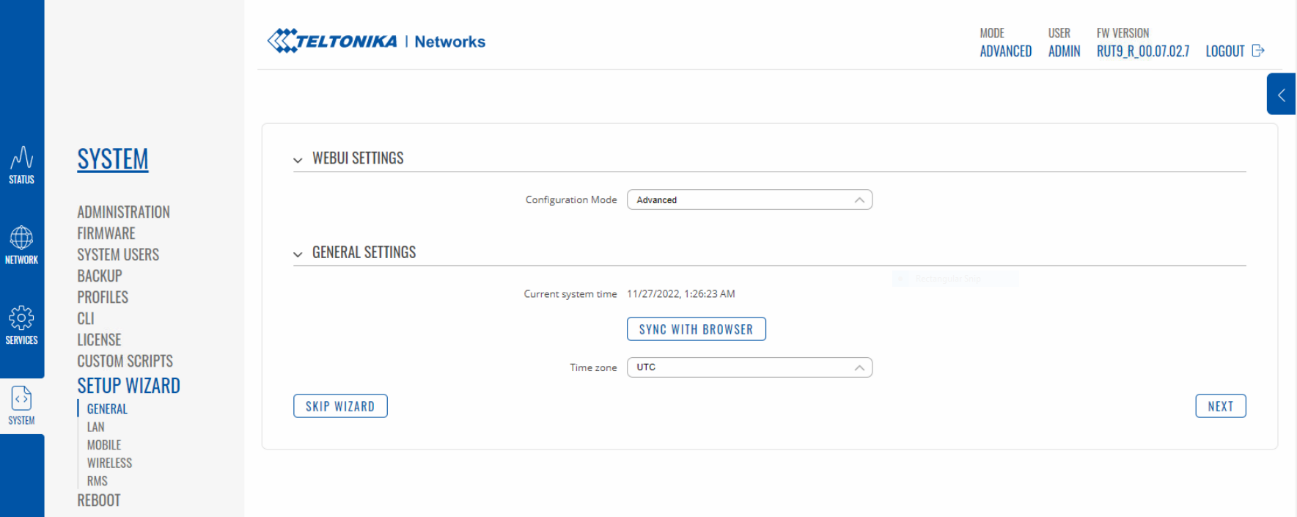

Step 1- General Tab

1. Under WebUI Settings, check that the Configuration Mode is set to Advanced.
2. Under General Settings, the Time Zone section can be left as default UTC
3. Select Next to apply the settings.

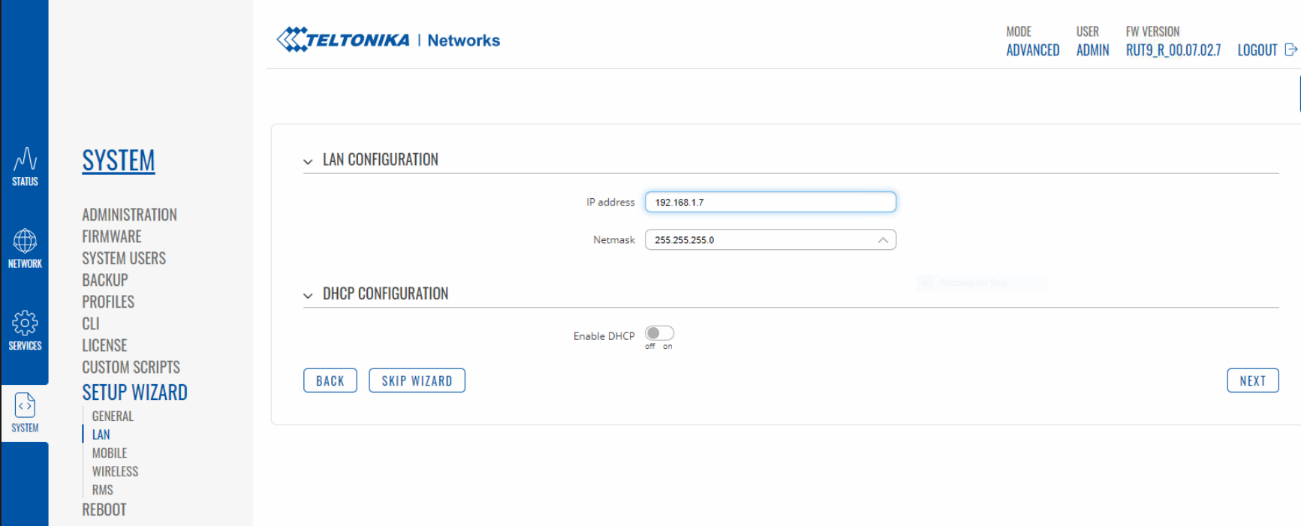

Step 2 - LAN Configuration

1. From the LAN menu.
2. Set the IP Address as per the approved system documentation.
3. Set Enable DHCP to OFF.
4. Select Next to apply the settings.

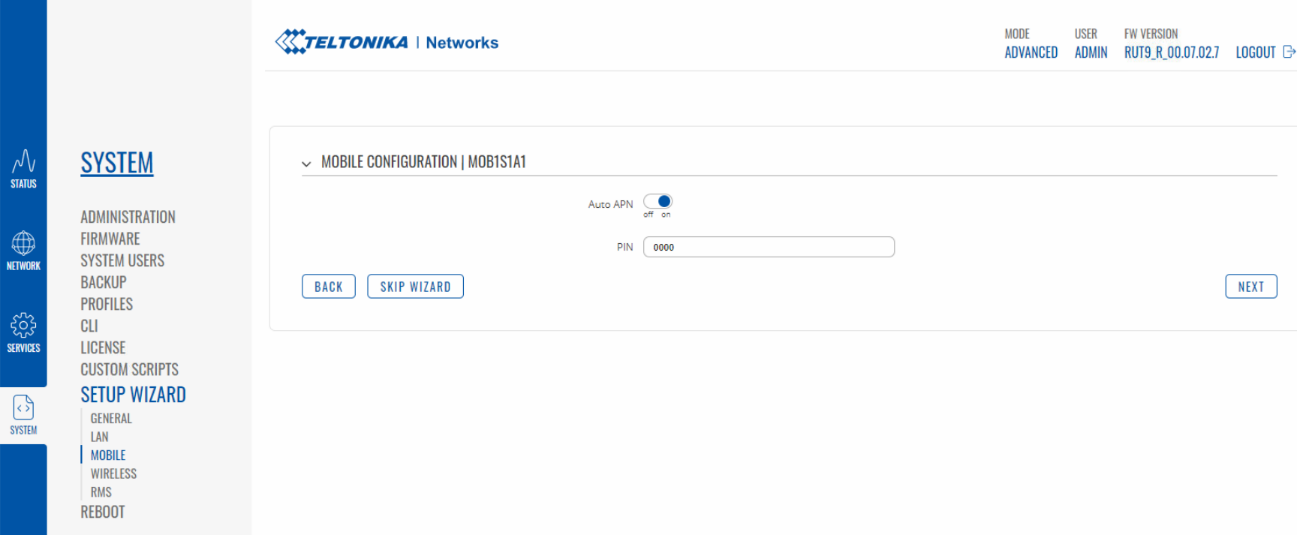

Step 3 - Mobile Tab

1. In the mobile configuration section, if the APN details are known, they can be manually entered by turning Auto APN to OFF.
2. If the APN is not know Auto APN should be set to ON as default.
3. Finally select Next to apply the settings.

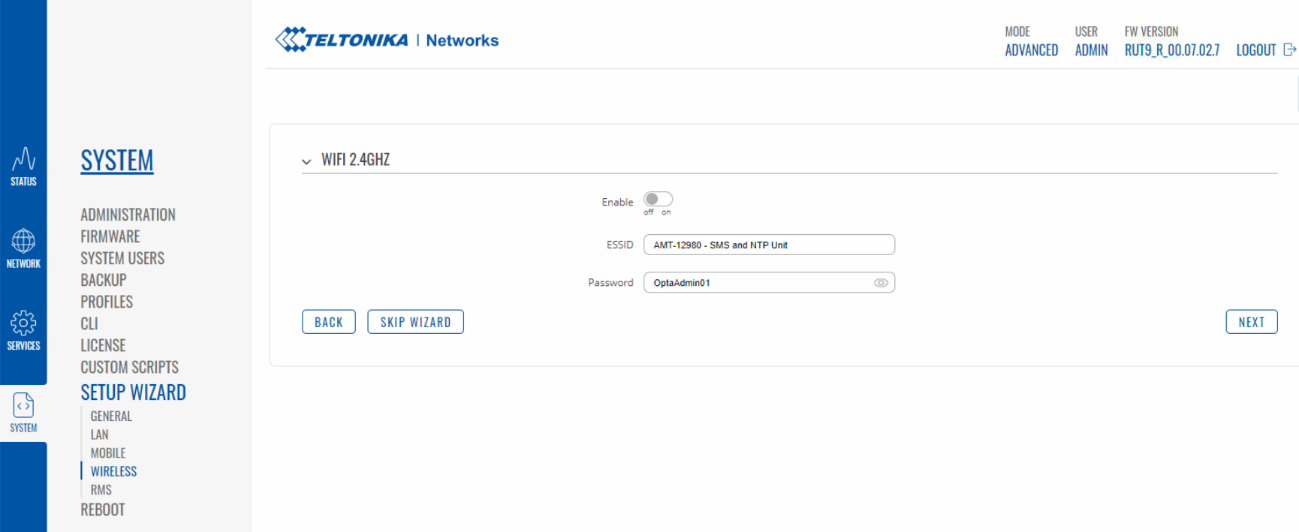

Step 4 - Wi-Fi Tab

1. From System Tab.
2. Via the Wireless Tab.
3. Make sure Enable is set to OFF.
4. Type in the units unique AMT reference as per the reference image into the ESSID box.
5. Set the password as per the agreed documentation.
6. Select Next to apply the settings.

Step 5 - RMS Tab

From System Tab.

1. Via the RMS Tab.
2. Make sure Connection Type is set to Disabled.
3. Finally select Finish to apply the settings and complete the wizard.

System Administration Settings

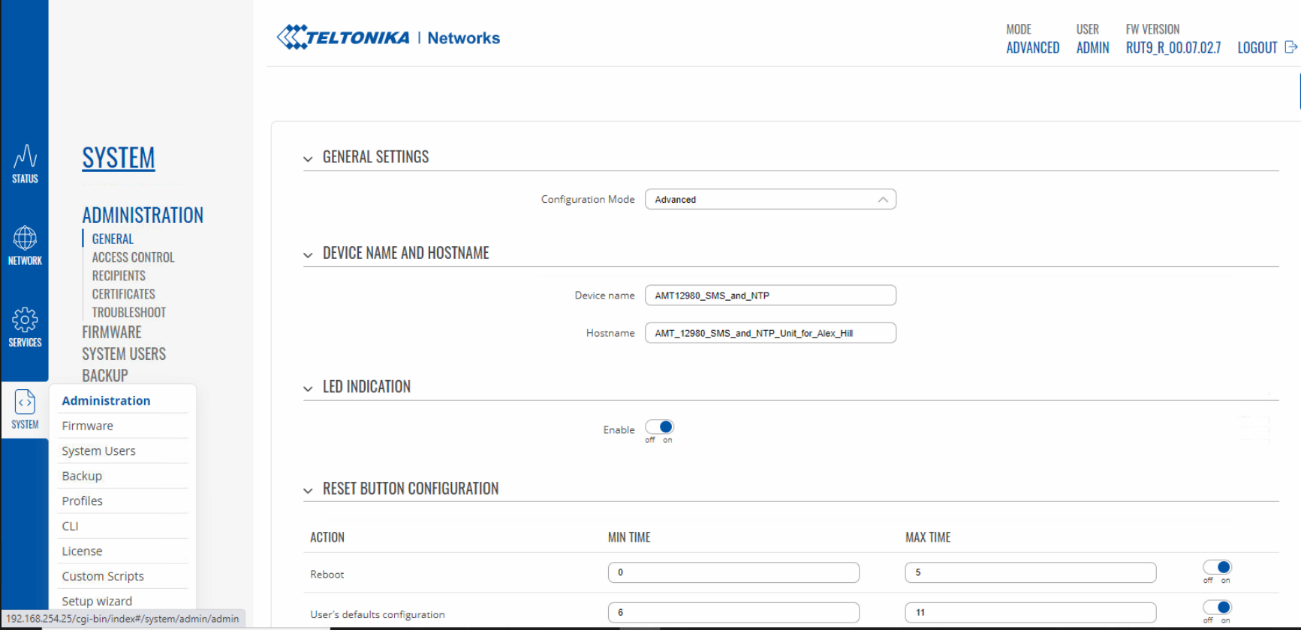

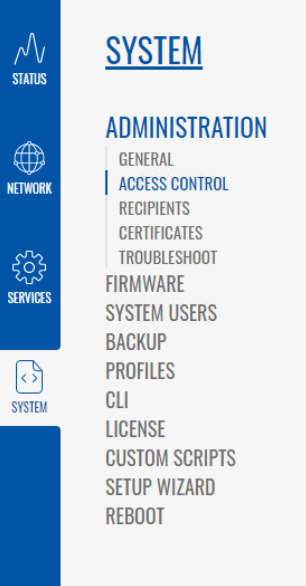

1. Select the System tab.

2. Navigate to, then select the Administration tab from the drop-down menu.

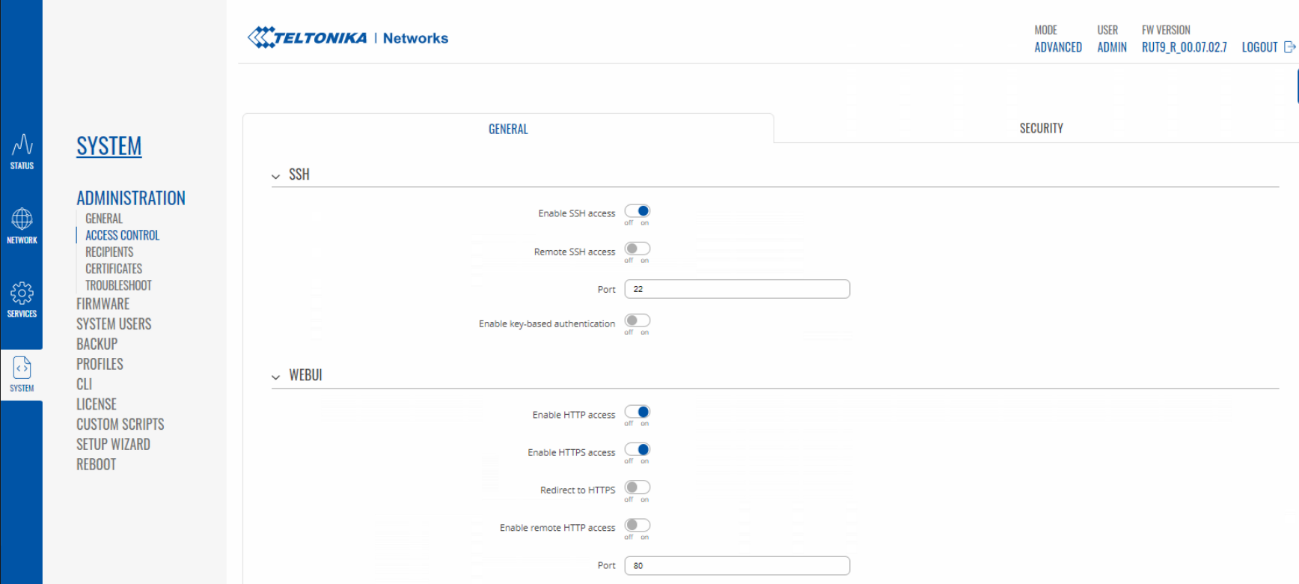

3. Go to Access Control option.



4. Via the General tab.

5. Turn ON the Enable SSH Access Secure option.

6. Finally select Save & Apply to apply the setting(s).



Important – Before you continue ensure you are not in the wrong tab. You should be in the Security tab and NOT the General tab. SSH MUST be enabled in the General Tab and it is advised to double check this before you continue.

1. Via the Security tab.

2. Turn OFF the Enable toggle for IP Block Setting.

3. There should be no Blocked Addresses listed in the section named Login Attempts, so a visual check is required to ensure there are no blocked IP addresses.

4. Finally select Save & Apply.



The IP address of the modem now needs be changed to be on the same network as the PU (refer to the approved documentation to check the IP address before continuing).

To do this:

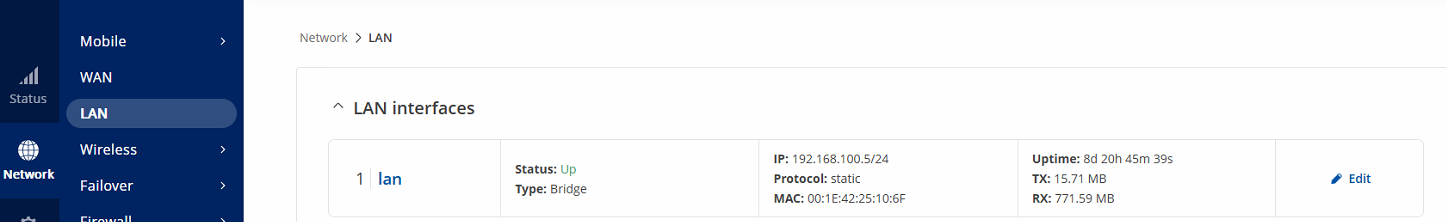

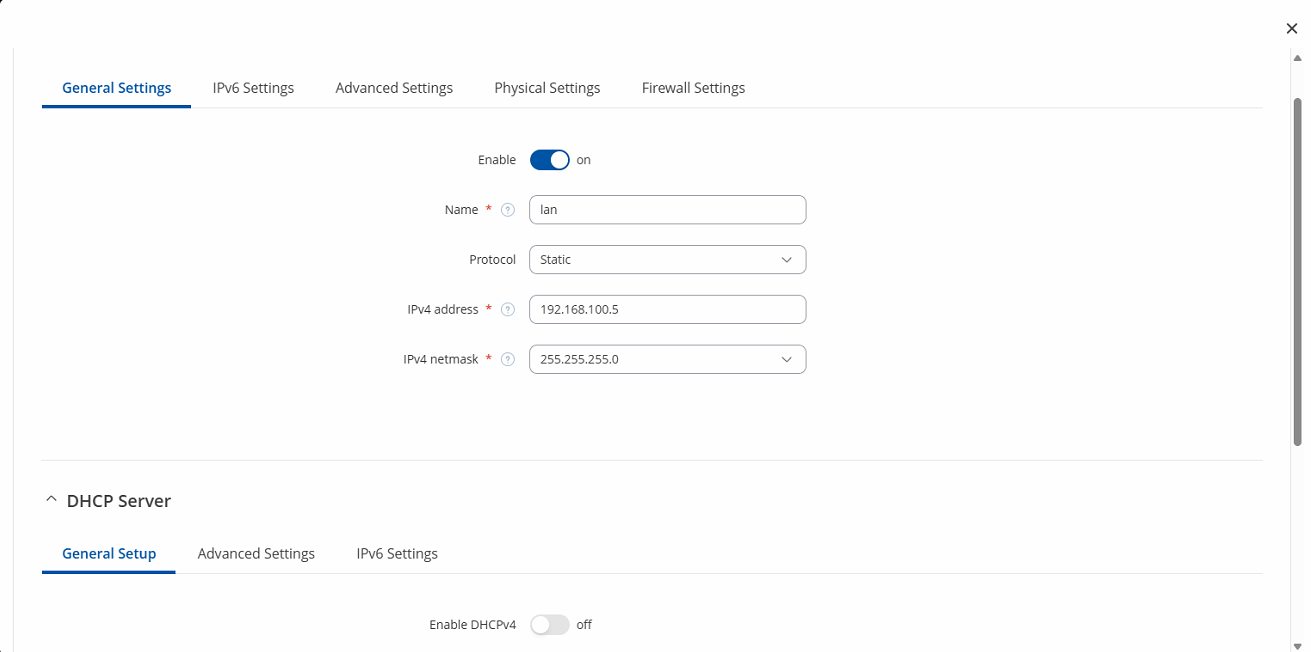

1. Select Network > LAN.



2. Locate the Edit pencil icon for the LAN connection.

3. Set the Protocol to Static from the dropdown selection.

4. Set the IPv4 address as per the approved system documentation.

5. Set the IPv4 netmask as per the approved system documentation.

6. Under General Setup section set Enable DHCPv4 to Disable.



7. Scroll down to the bottom of this window.

8. Press Save & Apply to finish this section.

   note

   As the interface IP address has now been changed from the units default 192.168.1.1 the interface will then become unusable, the CU’s IP address will now need to be reset for example 192.168.100.xxx so you can reconnect to the unit. The next step is to refer to the approved system documentation to ensure the correct IP address has been set for the (CU) Control Unit.

9. If necessary, Select Network > DNS and configure the DNS servers as per the approved system documentation.

Config Import and Export

A preconfigured config can be imported into the unit. It’s important the config is compatible with the unit’s model number and firmware version. In the example below, the file name is constructed from the model no., the firmware version, and the date created.

Example: V03020-RUT9XX_R_00.06.00.3_2019_03_27.tar.gz.

Go to System > Maintenance > Backup. From here the configuration can bebacked up or restored. Note: When downloading a config, please follow the naming convention as shown in the example above.

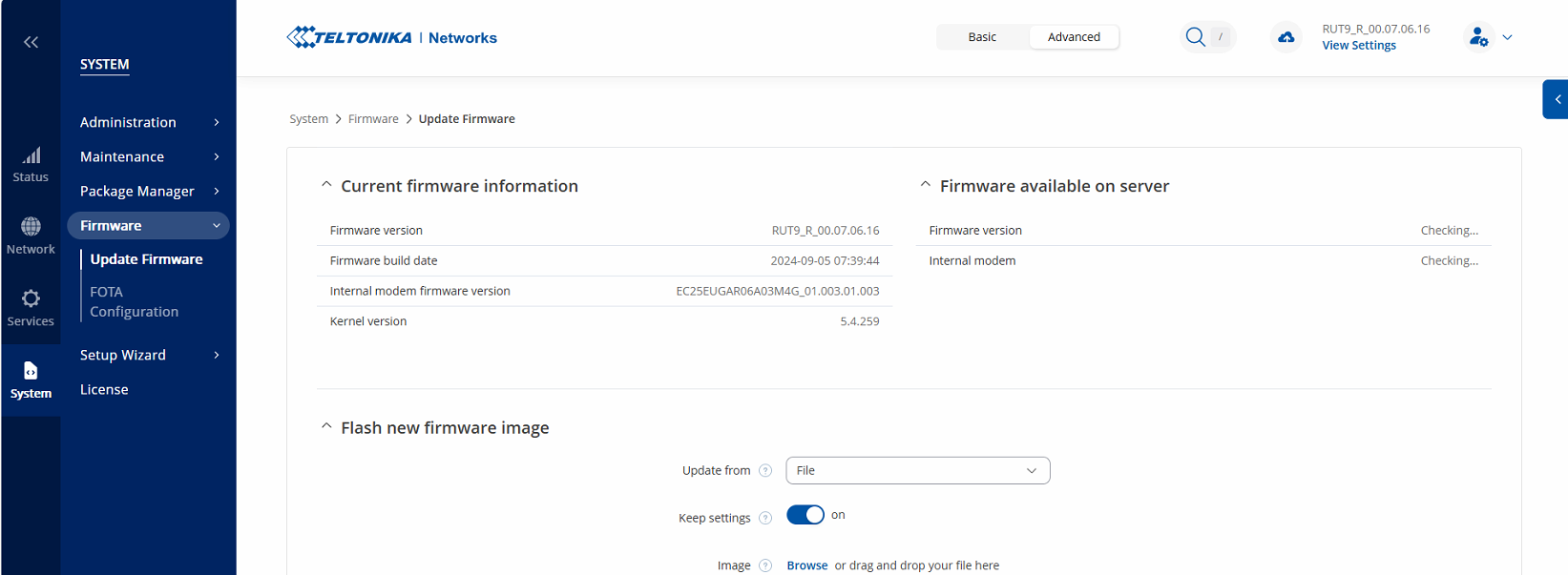

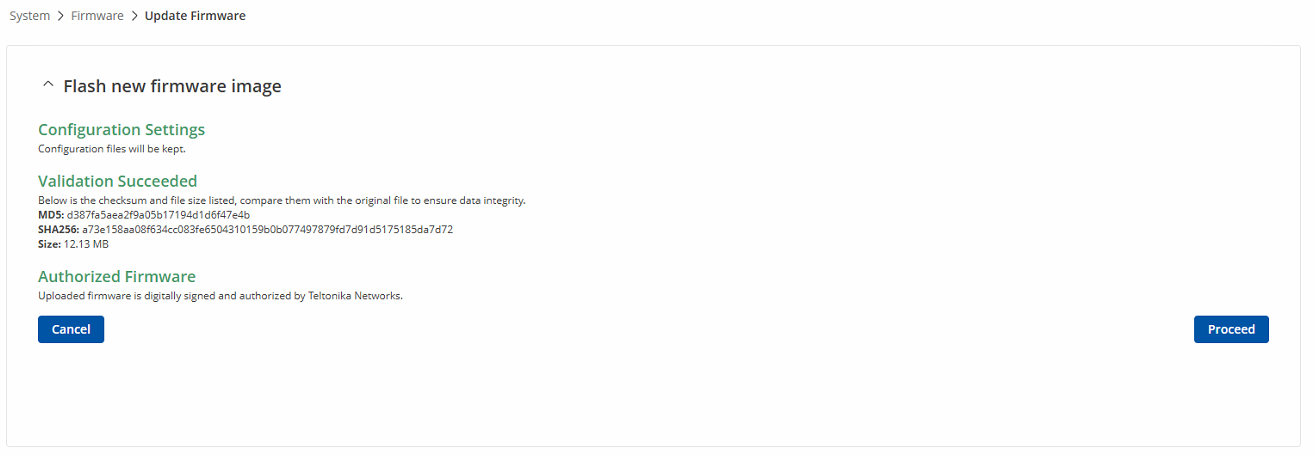

Firmware Import and Upgrade

1. Navigate to System tab

2. Next navigate to and then select Firmware



3. Depending on what network connection is available it may be possible to update from the server. If not, the firmware can be updated from a file obtained from the Teltonika website.

4. Select Update from file from the dropdown box and Keep settings selection box is ON. Then Browse and choose the required firmware file, example (RUT9XX_R_00.07.02.7_2022_11_27.tar.gz). The file will be uploaded and checked for compabilitity. Assuming this passes then and click Proceed to begin the update.



The modem will reboot for about 30 seconds, it would be a good idea to setup a test ping so you know when the unit has rebooted, after rebooting the unit will then be usable with its new firmware.

tip

Check the configuration settings after upgrading the firmware as we have seen config corruption issues in the past.

Syncing CU / System to Modems NTP

To configure a CU to use the modem as an NTP time source, do the following.

1. In Windows search type “date & time”, then press enter.
2. Select “Additional date, time & regional settings”, then “Date and Time”.
3. Select “Internet time”, then “Change setting”.
4. Type the modems IP address in the server box and select “update now”.
5. The CU’s time zone can be set to the appropriate region for the installation.

Troubleshooting

The modem has capacity for two SIM cards. This is to provide redundancy if one of the cards were to fail. Note: If another card were to be added the unit would need a reboot.

• If the control unit is inaccessible via the webpage control this could be because the logon password has been input incorrectly on multiple occasions. If this is the case, then change the IP address of your CU to an unused IP address. Log in to the Teltonika unit, navigate to System > Administration > Access Control and remove the blocked IP address. After removing the blocked IP address change the IP address back to the original IP address.

• The modem has capacity for two SIM cards. This can provide redundancy if one of the cards were to fail. Note: If another SIM card were to be added the unit would need a reboot.

• If the Teltonika unit is sending messages but messages are not being sent from the OS6 Software, firstly check that SMS has been licensed. If this does not resolve the issue then check that SSH settings have been enabled in the General tab and disabled in the security tab.

Setting up SMS in OS6

info

The External Comms process will need to be loaded into the system. For information on how to add a process into the software, see Module 12.

From the software toolbar, go to the Configure > External Communications > SMS. If the External Communications menu isn’t available check that you are logged in with the appropriate access level.

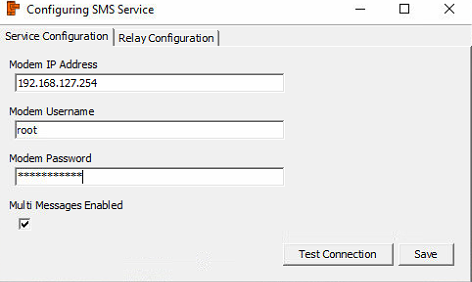

In the Configuring SMS Service box enter the IP address of the Modem (this will be the address of the Teltonika modem) and the Username/Password**.** The Username is always “root” and the password is the password of the teltonika modem (refer to approved documentation).

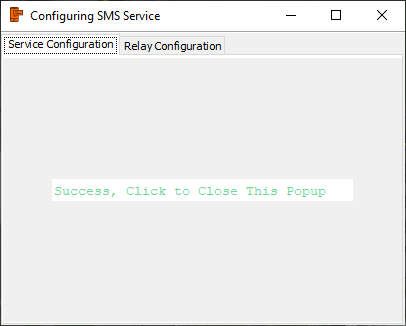

Then click test connection to confirm that OS6 can talk to the modem.

Click anywhere to go back to the settings box and click save.

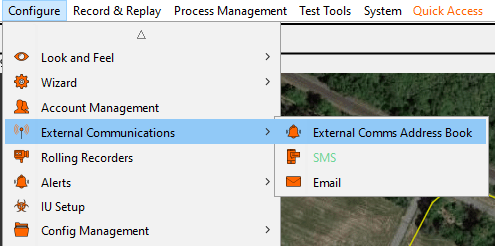

To access the address box, go to Configure > External Communications > External Comms Address Book.

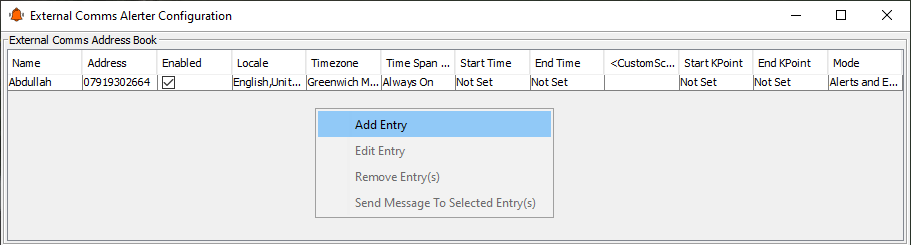

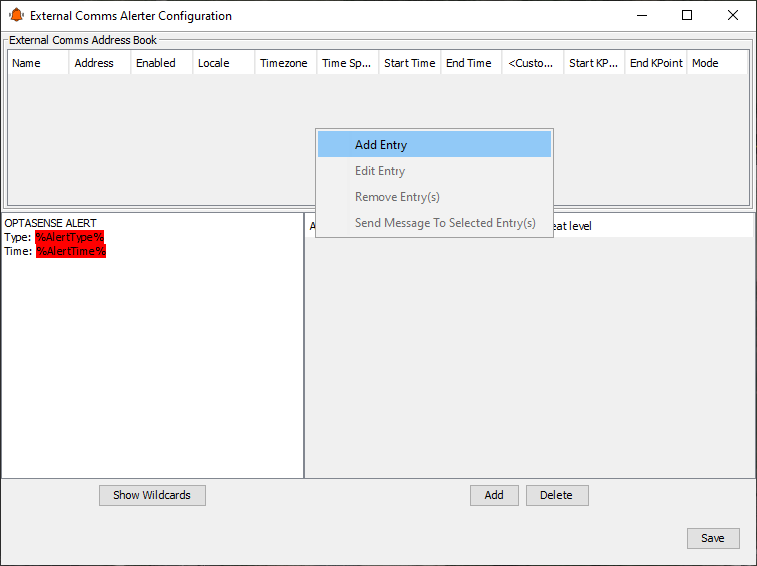

To add a mobile number to the address book, right click in an empty space within the address book area and select Add Entry.

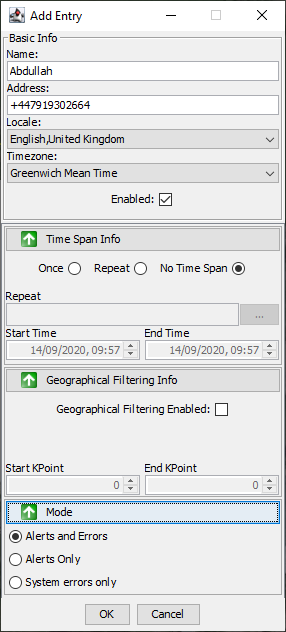

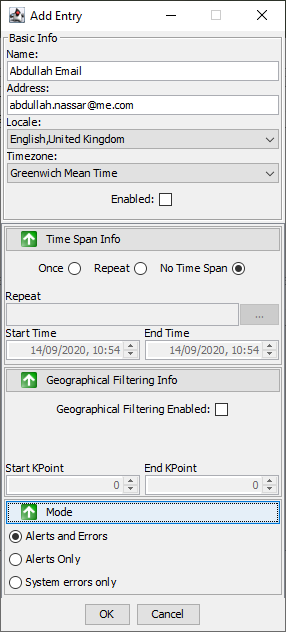

In the Add Entry box, enter a name in the name field, followed by the mobile number that the notifications will get sent to. Make sure the Enabled checkbox is checked. Press ‘Ok’.

tip

Phone numbers should be added in their local number format, unless they are sending internationally. The + in the internation area code should be input as 00 to prevent the modem from crashing.

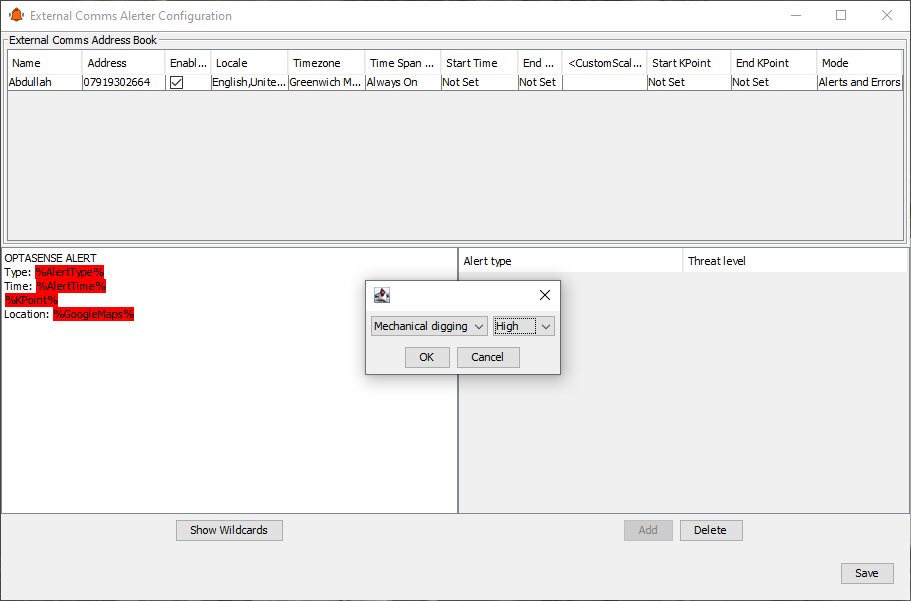

In the Alert type box select add. Then select what type of alerts and the threat level that should be forwarded to address book entries. Note: multiple entries can be added.

The information contained in the notification SMS can be refined. Select Show Wildcard to provide a list of cards that can be added to the system. For example, using the card would provide a map link in any sent SMS’s. If the recipient was to click on the link, they would be shown a point on a map of where the alert was generated. Wildcards can be added into the SMS text by copying the wildcard text. To apply all the settings in this section, select Apply All.

Email Interface

The External Communications Controller will need to be installed via the System Install Scheduler. For information on how to install this, refer to Module 12.

Software Setup

The email interface has been designed to communicate with external systems and users via email. The interface can be configured to store a set of users and then assign specific actions to each user. For example – users can be set up to receive various levels of alerts and system errors. Email interface runs directly on the node which means that there is a requirement for the node to be connected to some form of internet to allow emails to be sent.

Configuring the Interface

From the software toolbar, go to the Configure > External Communications > Email.

The Email Service configuration window will appear

![](media/fb69075fd32d368ff1ee7a636e188aa3.png "Email Service configuration)

If the PU has direct access to the internet, the service can be configured to talk directly to an external third-party SMTP server, If not and only the CU has internet access then email can be configured to be relayed to the CU first and sent from there. The service configuration below is the same in either case.

• SMTP Host Name: Host address of SMTP server.
• SMTP Port: Port number used by SMTP server to receive email.
• UserName: Host username.
• Password: Host password.
• From Address: Senders email address.
• Secure Comms (SSL) Enabled: Offers upgraded encryption of mail if SMTP server supports it.

note

The “Test Connection” button only confirms that the SMTP server host and port are accessible from the machine running the External Comms Interface (or CU when in relay mode). It does not test whether the credentials are correct.

note

Gmail and Outlook.com (Hotmail) email addresses do not work well for testing functionality. Both services are becoming increasingly difficult to send SMTP email messages through. Ideally, an outgoing email server and credentials should be provided by the customer.

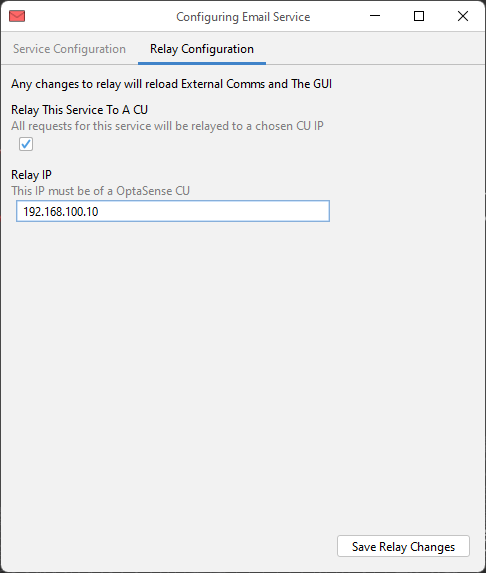

Email Relay

For installations where PUs do not have access to the internet, emails to be sent can be relayed via a CU. Select the “Relay this service to a CU” box to enable this feature and enter the IP address of a CU to use. Any CU in a system will be running the background service required and will be able to perform this function.

The IP of the current CU will be populated by default, this can be changed if required. In the case of CUs with multiple IP addresses, care should be taken to ensure that the IP specified here is contactable by the PUs in the system.

Configuring Email Address Book

Contacts that will receive email notifications can be created in the address book using email addresses. Currently a separate contact needs to be created if the same person is to receive email SMS notifications. The following steps need to be followed to configure email addresses:

1. Within the Address Book Entries section, right-click and select “Add Entry” from the External Communications Dialog.



2. This will open the “Add Entry” window within this window all information needs to be added for the contact.



3. Ensure that the “Enabled” check box is checked if the email address is to be used.

Setting Alert Types

The last step is to configure which alert types are to be reported via email these options will be limited to the activity types specified in the current software build. The following steps need to be followed:

1. View the current alert types in the “Alert Type” panel in the “External Communications Dialog”.



2. The “Alert Types” can be deleted by left-clicking on the “Alert Type” followed by left-clicking on the “Delete” icon.

3. The “Alert Types” can be added by left-clicking on the “Alert Type” this will bring up the alert selection window. Within this window the activity type can be selected via the first dropdown box and the alert type (low, medium or high) via the second drop down box.

   NOTE: Only one type of alert can be selected at a time, e.g. only one instance of the Leak Detector can be present not a High Leak Detector and a Medium Leak Detector.



4. The final option in the “External Communications Dialog” is the “Alert Message Text” this can be configured as required for the client. The Show Wildcards box provides details of additional items that can be included in the message text, such as a Google Maps link to the location and the client specific KP.

   note

   The text in the Alert Message is free text and can be modified as required for the client, the wildcards can be copied from the Wildcards window and pasted into the Alert Message or can be typed using the syntax %Wildcard%, i.e. %AlertType%.

System Health Diagnostics Reporting

A diagnostic report can be run to provide an overview of the systems health. There are a few things that need to be setup for this to happen.

note

Diagnostic Reporting needs to be licenced.

To run a report or check when the next auto report is due:

1. Go to the Historical Analysis menu and select “Diagnostic Reports”



2. To run a report, specify the reporting date and click “Generate”.





3. Select the required location of where the file will be stored. Click save to compile the report.



4. The report will automatically open in the CU’s internet browser. If it doesn’t, navigate to where the report is stored and open the file “Health Report” as either .HTML or .XML format.



Forwarding Diagnostics Reports

Reports can be forwarded to email recipients.

Go to Configure > Setup Wizard > Diagnostics Report Scheduler. There are two options that need to set:

• Schedule when the system will make a Diagnostic Report determines how often the system will generate and store reports in its database.
• Saved reports will be deleted within the database after limits the time that the system will keep reports before deleting them. Selecting finish will commit any changes.

Camera Interface

Prerequisites:

• The Camera Interface is not installed by default and will need to be added via the ‘System Install Scheduler’ editor. See Module 12 for instructions on adding a new interface into the system.

• For the interface to work with a camera, the camera needs to be on the same network as the PU.

To add a camera to the system, go to the Configure > Wizard > Camera Interface menu option.

From the Interfaces section, select Add New Camera.

The next box requires details about the camera being added.

• Camera Name: The name displayed to the user of the system
• Camera API: There are two API’s available (PELCO & ONVIF).
• Camera IP Address: IP Address of the Camera.
• Username / Password Fields: Username / Password required to login to the camera’s web interface.
• Latitude / Longitude*:* Is the physical location of the camera geographically and will be the position it gets placed on the system map.
• Cameras Aspect Ratio: can be left as default.
• Deinterlace: Can be checked and may clean up the visual quality in the received camera feed.

With the camera added, select Test to check the connection.

If successful, the following box will be shown.

To finish the install, select OK and Finish.

Calibration

From the Configure menu, select the Camera.

On the Map there is a camera icon with a box around it. This indicates that the camera needs calibrating. Right click on it and select Calibrate “Camera Name”.

There are two ways to set the calibration position. The first is to set it by entering LAT / LONG coordinates. The second is to manually draw it on the map.

Setting Calibration Via LAT / LONG Coordinates

Every time the Camera Calibration window is opened, the integrated camera will set itself to its home position. To see this and to get a live feed, from the Display menu select Camera Window.

Selecting the Manual radio button will provide a live feed to the camera. If you have added more than one camera, these can be selected from the dropdown box.

With the camera in its home position, visually pick a spot in the middle of the image at least 50 meters away. Now physically go to that location and take the Lat/Long coordinates. Those coordinates need to be inputted into “Target LAT/LONG at Zero Bearing” fields.

Selecting ok will calibrate the camera but first it’s important to consider the following settings.

• Set by Bearing: Allows the cameras home position to be offset left or right. This is useful if the cameras hardwired home position is inconveniently situated. Therefore, a more convenient position can be set, which in turn enables a calibration point to be set relative to the new home position.
• **Calibrate Tilt: “**Test Horizontal Tilt Limits” - This will force the camera to its full minus tilt position. Notice on the live camera feed, the angle is displayed. This can help to determine an appropriate value to input into the “Camera Reference Tilt Position” field. Setting a value here will be the tilt position for a given area. (Areas are covered in section Creating Camera Areas). “Reverse Tilt” - Changes the cameras tilt position to positive.
• Camera Height: This needs to be set to the physical height of the camera.

Setting Calibration Via Drawing on Map

Providing the map and fibre route have been geographically referenced, the calibration point can be drawn on the map. From the map window right click on the Camera and select Calibrate “Camera Name”.

Select “Set from Map Window” and select ok

With the calibration window open, select on the map where you want the calibration point to be positioned. Select ok to confirm the position.

Creating Camera Areas

On the map window right click on the camera icon and select Add Area To “Add Areas to Camera Name”.

Now draw an area over the section of fibre you want the camera to cover.

The settings in the “Areas for Camera” window may need to be adjusted to suit the area being setup.

• Area Channel Coverage (Highlighted in red): The zone coverage can be edited manually.
• Set Height: Allows a height to be set for an area. For example, if the camera is X above / below sea level and the area is above / below the camera, obviously there is a difference in height. If the difference is worked out, that amount can be entered.
• Set Zoom: Works like a snapshot. When selected, the cameras zoom will be used for the entire area. To accurately get this to work, one should login to the camera’s web interface, manually set the required zoom and then select “Set Zoom” on the Area for Camera window.

To edit the camera area, on the map right click on the camera and select “Edit Camera Area for Camera”.

The edit camera box will display all the areas setup for the camera. The numbers highlighted in red represent distance in terms of channels, these can be edited. If “Overlap” is shown, this is because an area overlaps another in terms of coverage. This isn’t necessarily a problem, just an indicator.

An overview of the camera setup areas will appear on the right-hand pane while configuring, this can be opened anytime from Configure menu and selecting Camera.

VMS

There are two ways in which VMS can be setup.

1. VMS receives the commands, logs it and drives the camera / s.



2. OS6 drives the camera and VMS logs the commands.



VMS Setup 1

Prerequisites:

• The camera interface first needs to be installed via the System Description Editor.
• For the interface to work directly with VMS, the VMS needs to be on the same network as the PU.

Launch the software. From the configure menu, select wizard then Camera Interface.

From the Interfaces section select Camera Interface. Select “Add New VMS”.

The VMS configuration box will require details relevant to the VMS.

• VMS Name: The name used to identify the VMS to the users of the system
• VMS: There are 2 VMSs to choose from, Wavestore or Milestone.
• VMS IP address: IP Address of the VMS.
• VMS Port No: Port number of the VMS.
• Username / Password Fields: Username / Password required to login to the VMS.

To finish the installation, select finish.

To get a live feed of the camera / s, from the Display menu select Camera Window.

Selecting the Manual radio button will provide a live feed. If you have added more than one camera, these can be selected from the dropdown box.

To add a VMS area, on the map window right-click and select Add VMS Areas.

Now draw a box around the required area.

The settings in the “VMS Zone Configuration” window may need to be adjusted to suit the VMS zone being setup.

• VMS: Select the dropdown arrow to select the desired camera.
• Select Overlaps: Can be used to select all overlapping area instances. An overlap is a zone area that extends into another. It isn’t necessarily a problem, just an indicator.
• Zone Channel Coverage (Highlighted in red): The zone’s channel coverage can be edited manually.

Select OK to finish the setup.

Note: Now that the OS has been setup to work with VMS / s, the OS VMS areas will need to be mirrored in the VMS. This is not covered in this manual as we cannot predict the configuration of the VMS / s.

VMS Setup 2

Having integrated the required camera/s, the VMS can now be bolted on as a logger.

From the configure menu, select Wizard then Camera Interface. Select “Add New VMS”.

The VMS configuration box will require details relevant to the VMS.

• VMS Name: The name used to identify the VMS to the users of the system
• VMS: There are 2 VMSs to choose from, Wavestore or Milestone.
• VMS IP address: IP Address of the VMS.
• VMS Port No: Port number of the VMS.
• Username / Password Fields: Username / Password required to login to the VMS.

To finish the installation, select OK.

note

The setup of getting VMS to log commands is not covered in this manual. This is because we cannot predict the configuration of the VMS/s.

Threat Rules

Open the Camera Interface window from Configure Wizard.

From the Interfaces section, select Camera Interface. Select Configure Camera Threat Rules.

Threat rules allow the user to prioritise where the camera will move first in the instance of multiple alerts. Each alert type can be stacked accordingly by dragging and dropping them. The “Add Rule Set to all OPS’s” will apply the threat priorities to all OPS’s. “Set Time to Track” is the time in seconds that the system / camera will track an alert before moving on any other alert type.

Milestone Configuration Guide

When you setup the DVR do not use the same Username as the Milestone Server name.

Set the Hostname to the AMT-xxxxx (xxxxx denotes unknown numbers).

Setup the camera presets on the camera.

Open the Milestone XProtect Management Client 2023 R1 (using the blue Milestone Icon with the Cog).

Check that the port is set as per the port in the OS6 Software (Default 1234).

On the Milestone software set up the firewall to prevent the port from being blocked.

The next step is to set the PU (Processing Unit). Note this is not the CU (Control Unit).

Go to Tools then Options.

The next menu is usually hidden off the right hand side if this display, so you will need to use the > on the right to navigate to the Generic Events tab.

In the following window set the port number to match the OS6 VMS configuration page also set the PU IP address and check that all of the other settings are as per the next reference image:

Next set the VMS zone / areas in OS6 by right clicking and then selecting Add VMS Areas.

Check that the zone start and end channel numbers are the same in OS6 and the Milestone setup / configuration.

Go to Devices then Cameras under the Site Navigation window, highlighted by the orange box.

After selecting this move to the next window along highlighted by the green box and select the + on the left side of Camera Group 1.

At this point you may need to widen the green highlighted box.

Next select the first of the cameras in the Camera Group 1 List.

Select Presets at the bottom of the next window highlighted by the light blue box.

Next select the Get button, this will then import the preset positions from the camera into the Milestone software / server.

The next step is to add Generic Events.

Go to Generic Events in the orange box, then right click on Generic Events at the top of the green box.

Next select Add New … or use the shortcut Ctrl + N.

Next add a unique name for this Generic Event for example Generic Event 1, then select OK.

Next select Regular expression from the Expression type selection list.

Check the following settings:

• Expression type is set to: Regular expression.
• Data source is set to Compatible.
• Priority is set to 1.

Next add the Expression as per this format:

0\%100\%200

OPS\%StartChannel\%EndChannel

Finally, select Rules from the orange section then move into the green section, this time right click on the Rules option near the top of the green section.

1. Add Unique Name.

2. Add Unique Description.

3. Check that Move <device> to <preset> position with PTZ <priority>

4. Select Event from External Event List, then press the OK button:



   The External option must always be External.

5. Selects the source camera.

6. To position (refers to the camera preset selection).

7. Press Next to continue.

Check that No actions performed on rule end is selected, then select Finish.

Moxa Dry Contact

There are several steps to configure a dry contact relay switch, these are:

1. Correct assembly of the dry contact relay switch.
2. Configuring the dry contact relay switch.
3. Configuring the OS6 software.

Currently, the dry contact relay switch used is a MOXA ioLogik E2214 Active Ethernet I/O 6 Digital Input, 6 Relay Output relay switch.

Safety

Ensure equipment is powered down and plug removed before connecting power MOXA ioLogik E2214. Although low power (12-36V DC) possible fault situations could cause the power supply to fail and provide a higher than normal voltage to the unit. Care should be taken when handling the power supply for both units. Check the voltage supplied from the power supply with a multimeter (if available); also ensure that the correct polarity for the power cable is connected. Positive is normally denoted by a white line along the cable. Polarity should be confirmed using a multimeter.

Function

The MOXA ioLogik E2214 is an RTU controller with 6 digital inputs and 6 relay outputs. Within the OS6 system the MOXA ioLogik E2214 controller provides 6 relay outputs, which can be configured by the user as required. A relay or dry contact refers to a secondary set of contacts within a circuit that opens or closes controlling some other contacts or devices (siren, buzzer, lights etc). These additional devices will be normally supplied by the client and an understanding of the required alert and level are needed. Dry contacts are not designed to run additional devices directly and normally provide zero voltage. Wet Contacts are normally limited to 30V DC max voltage across the contacts.

The relay/dry contacts are typically in two states; Normally Open or Normally Closed. Normally Open signifies that the circuit and relay is in an open state during normal operation. For example, when running a siren which is only required to be powered at the instance of an alert or for certain alert type.
In a Normally Closed situation the circuit would be completed at all times and be broken when the relay is activated at the time of an alert. Multiple units can be linked together with each dry contact triggering an alarm for a given “zone” of coverage. This can be done by location on a perimeter and by KP / mile marker on a railway/pipeline, it should be noted that this reduces the resolution of the system.

On power up the default status of the dry contacts is off although this can be defined within the ioLogik E2214 Controller configuration and changed to ON or PULSE, also it can be configured to an interval which provides the ability to switch on the channel sequentially to avoid a sudden high-power burst.

On a power loss situation, the dry contacts open, if the system is designed to alert on an open contact this would cause an alert to be transferred to the client system ensuring that the power loss to the unit can be identified. Therefore, it is preferred that the default state of the dry contact set in the proprietary software is OFF.

Within the software the ioLogik device can provide three different output modes: HIGH, LOW and PULSE. HIGH and LOW change the dry contact to ON (HIGH) and OFF (LOW) conditions. Whereas a PULSE mode will change from a HIGH to LOW (or LOW to HIGH) for a user defined time interval.
If a dry contact is changed from one state to another, for example HIGH to LOW, when an alert is raised this will stay in this condition until the alert is acknowledged by the user.

If the mode is set to PULSE, the relay will change states for the specified time period and revert back to its default state. Therefore, if no user interaction is required with the software, then a PULSE mode must be used. The OS6 Map Display tote will display a maximum of 1000 alerts (most recent).

Equipment

To enable the set up and configuration of the MOXA ioLogik E2214 the following is required –

• 12-48VDC power supply
• Ethernet Cable
• Multimeter / Buzzer for testing
• OS6 Software

Hardware Assembly

It should be noted that the dry contact can be used for a wide range of applications such as lights and sirens. It can also, for example, be used to interface to the SCADA system.

It is important to get the power leads correctly. Once the 12 to 36 VDC power line is connected to the ioLogik’s terminal block the power LED will glow a solid red (circled in green). NOTE 0V needs to be connected to V- and if a rack ground is present and available this needs to be connected to FG.

There are 6 relay switches (R0 – R5) that can be connected to external devices. Each of these relays have two output terminals that need to be connected to the external device. How they are connected will be dependent on the device being used. NOTE: For the FAT no external devices are used, verification is achieved by the ON/OFF indicator changing due to alerts and errors.

Configuring Dry Contact Switch

There are a few steps that need to be completed to configure the dry contact switch. They are to change the IP address to reflect the ND, configure the dry contact switch to alarm on loss of ethernet connection, configure the switch to use the NTP server as a time server and to set the output relay switches to be defaulted OFF (this needs to be coupled with the ioLogikConfig.txt file setup discussed at the end of this Technical Advisory Note).

Configuring IP Addresses

The first is to change the IP address the default IP address is 192.168.127.254. The steps for changing the IP address are as follows:

• Use a web browser to log on to the default IP address of 192.168.127.254.
• Select the ‘Network Settings’ folder within the left-hand pane.
• Select the sub-directory ‘Ethernet Configurations’.
• Enter the required IP address, subnet mask etc as per the approved system documentation.
• Press ‘Submit’.
• The 192.168.127.254 webpage will not be available now after the change. As a final check, enter a web browser the new IP address and check that it is set correctly.

Configure to Safe Mode on Loss of Ethernet Connection

• Use a web browser to log on to the new IP address as per the approved system documentation.
• Select the ‘Network Settings’ folder within the left-hand pane.
• Select the sub-directory ‘General Settings’.
• The “Enable communication watchdog” box needs to be ticked and the time set to 10 seconds or user specific time period. NOTE: There is no requirement to change the other settings (Server Name/Location or DNS Server)
• Finally click on “Submit” confirmation to save changes will appear select ‘yes’ and the changes will be saved.

• On network outage this will put the dry contacts into the safe status mode as specified in section 6.7. Once the unit has lost network connection and has entered safe status mode it will continue in safe status mode until rebooted even with the network connection re-established. Whilst in safe status mode if the network is lost again the unit will stay in its current mode and not revert back to safe status.
• This safe mode on the dry contact ensure that they are reset to a “safe mode” i.e., off to reset the alarm and to stop causing nuisance alarms. An alternative method to monitor the communications with the ioLogik unit is to use the System Monitor and add the IP address of the unit and use the OS6 software to monitor the network communications.

Configure Dry Contact Switch to use NTP Server

• Select the ‘Basic Settings’ folder within the left-hand pane.
• This will bring up the Basic Settings view. Enter the IP address of the NTP server into the “Time Server” field and ensure “Web console” is enabled. If the customer is not using an NTP server, enter the IP address of the PU being used for system time.
• Click on “Submit” this will then ask to save changes select yes and the changes will be saved.

Configure the Output Relay Switches to be Defaulted Off

• Select the ‘I/O Settings’ folder within the left-hand pane.
• Then select the sub-directory ‘DO Channels’ folder within the left-hand pane.
• Select each DO Channel in turn (DO-0 to DO-5) this will bring up the option window. Switch the “Power On Setting” to OFF and “Safe Status Setting” to OFF. This ensures that the software forces the dry contact to open and when power is lost the contacts open. With a safe status of OFF an alert will be raised if network connection is lost.

• Depending on the user requirements it may be preferred to either set all relays to the same safe status i.e., all off or opposite to the default or designate a signal dry contact to indicate a network issue and all other dry contacts revert to the default position so that spurious alarms are not raised.
• Once all outputs DO-0 to DO-5 have been set to on the dry contact relay switch configuration needs to be saved and rebooted to do this the “Save/Restart” folder needs to be selected this will bring up the Save/Restart window. Within this window select “Submit”.

• The dry contact relay switch will now restart, and all DO outputs will now be OFF. This can be confirmed via the status lights.

Export / Import System Config

It is possible to export the ioLogik System Configuration to save the existing configuration and also to enable the configuration to be imported into a replacement or secondary unit if required.

• To Export the configuration file under the System Management menu in the left-hand pane select Export System Config

• Click the hyperlink displayed to export the system configuration file and save to an appropriate location

• Upload the exported System Configuration file to the Project Workspace on Huddle



• To Import the system Configuration, select Import System Config from the System Management Menu

• Browse to the location of the ioLogik configuration file (i.e. “ik2214.txt”)

• Click Import to import the file to the unit (Note: The file import process may take around 10 seconds. Do not disconnect power or network cable unit the file import has been completed)



Adding Dry Contact Process into the System

Please refer to Module 12 on how to install a process into the system via the system descriptor

Dry Contact Wizard

If the Dry Contact (or ioLogik) controller is required for the system and has been included in system descriptor, the option to configure the Dry Contact via the OS6 Configuration Wizard. Initially the Dry Contact will not be configured for use; the user will need to create a set by selecting the “Create Set” button.

Once a set has been created, the user is able to add the Host IP address from the ND and the number of ioLogik outputs (default 6), if additional Dry Contact (ioLogik) units are to be installed additional sets can be created with the individual IP addresses for the units.

The user can then configure each individual Output on the Dry Contact unit. This includes the default state, either high (closed) or low (open), and also to report a high (closed) or low (open) on any system error or high alert (option changes depending on the default state). If report high/low on any high alert is deselected and the “In-Zone Configuration” is required, an additional window will open allowing the user to add the In Zone Configuration for the specific ioLogik Output. To bring up this window, right click in the In-Zone Configuration window to add an In-Zone configuration.

The user is then able to enter the specific OPS number and also the Channel range for the output to the identified with. This enables the dry contact output to be classified with a specific zone on a specific OPS which allows additional user configuration on how the dry contact operates on the system. Once the required OPS and channel range has been entered it is possible to enter how long the output pulses (to Low) for in seconds and also which alert level (Low, Medium or High). It is then possible to select the individual alert types for the dry contact to trigger; the unit can be configured to trigger on multiple alert types or single alert types.

Troubleshooting

If ioLogik is displayed as ‘Crashed’ in ‘System Health’ or doesn’t appear in the ‘System Health’ at all after you have added it in the ‘System Description Editor’ please ensure you have fully closed the OS6 software and open it again. If ioLogik still isn’t working properly, please remove it from ‘System Description Editor’ and add it again. For any other Dry Contact software issues please investigate the ioLogik Logs. As MOXA is a 3rd party system for hardware issues, please refer to the MOXA external manual.

OPC-UA Setup

To integrate OPC-UA into OS6 software, it will need to be installed via the System Descriptor. For information on how to install a process, refer to section 2. Note: The older version of OPC-DA (Matrikon explorer) still features in earlier OS versions, however it is now being phased out by this interface and is NOT available to new clients. For information on how to install this older OPC variant please consult an earlier release of the OS Installation Manuals.

Launch the OS6 software. From the Configure menu, select Wizard then OPC-UA 1.

The OPC UA 1 section will require details relevant to the client (Client: Clients OPC-UA Software).

Connection Settings

• Port: Is the port number the server (PU) uses to pass /receive data. Typically, this can be left as default unless required.
• Bind to all Network Interface address: Can be checked when there is a single client within the network. Works like an auto client scan.
• Bind to specific Network Interface Address: Can be checked if the IP address of the client is known.

Note: If there is to be multiple OPC-UA Interfaces in a system (For example OPC-UA 1 and OPC-UA 2), using the Bind to specific Network Interface Address ensures each OPC-UA Interface can be linked to the correct client.

OPC-UA Configuration

• Username & Password: Is where a username/password can be specified and therefore required by the client. Typically, this can be left as default (Anonymous) if security isn’t a concern.

Alert Level Settings

• Send only High Alerts: Can be checked so that the system will only post high-level alerts.
• Send only New Alerts: Can be checked so that the system will only post new alerts and not updates of existing alerts.

Log Message Settings

• Lowest Level of log message to send: Can be selected to refine what type of log messages will be posted (Not alert).

The OPC UA 1 - OPS section can be used to specify which OPS / s will post data to the client. Highlight which OPS’s are required and select the right arrow to move them across to the right box.

The OPC UA 1 - Alerts section can be used to specify which Alerts will be posted to the client. Highlight which type of alerts are required and select the right arrow to move them across to the right box. Once all the required settings have been set, select finish to save the changes.

Because there are various software’s that can operate as a client to the system, this guide will only give a basic overview of what may be required for the system to pass data to the client. Below are the typical connection settings for an OPC-UA client. The minimum information required should be,

• Server Information / Endpoint: is a connection string. The required string will be:

  opc.tcp://<SERVER_IP>:<PORT>/ola-opcua

• SERVER_IP: is the IP Address of the PU.

• PORT: Is the port number the client uses to receive data. Typically, this can be left as default (12686) unless required.

• An example of a full string is OPC.tcp://192.168.100.1:12686/ola-opcua

• Transfer Protocol: Should be set to OPC.tcp

Note: the CU, PU, IU and OPC-UA Client will typically need to be on the same network for everything to communicate.

Rest Interface

The Rest Interface can be used to interact and receive live and historical information from the OS6 system externally. The REST interface can be easily integrated into new or existing services to receive Histogram data or Alert information within a Local Network.

There are some basic configurations values that can be altered once the Rest Interface module has been installed. You can access this configuration from the REST Interface Configuration dialog.

• Port: The TCP port that the REST Interface will listen on for interaction.
• Username: The username used to secure the REST interface.
• Password: The password used to secure the REST interface.

Modifications to the REST Interface configuration will apply to the entire system.

To access the REST Interface it is firstly important to understand the interface using the generated Open API documentation. The documentation can be accessed via any server running the REST Interface via any modern web browser.

http://<ip address>:<port>

Where the IP address is the address of the server and port is that which has been configured via the REST Interface Configuration dialog.

To access specific REST endpoint you can use a similar HTTP request as below.

http://<ip address>:<port>/api/<endpoint>

Where endpoint is the name of the REST endpoint as documented.

Note* Histogram Live or Historical Waterfall streamed data must be accessed directly via the OPS where the data resides.

HTTP Interface

The HTTP Interface has now been superseded by the REST Interface, please see Section 10. This interface has been deprecated and will no longer be supported for new installations. Any customer wishing to interface with the OS6 system it is highly advised they implement an interface to our REST Interface.

To integrate the HTTP Interface into OS6 software, it will need to be available as a service via the System Descriptor Editor. For information on how to install an additional process, refer to Module 12

This chapter first verifies that alerts are being received on the system (and on the desired test CU) and then sets up the HTTP service to verify that alerts can also be received on that channel.

Confirm HTTP Interface settings are correct.

From the Configure menu, select Wizard and open the wizard window and select the OLA Interfaces option. From there, select HTTP Interface 1.

Depending on the setup enable the receive and broadcast options to reveal the outgoing settings. Set the clients server as the test tool IP address.

The next section allows the configuration to output or block the alerts from any of the available OPS’s.

The last section allows the configuration to output or block the individual alert types from being posted via the HTTP tool.

Test Tool

Once the OS6 GUI has been restarted, you can check to see if the server is running by starting the HTTP Interface Test Tool provided in the software.

The tool can be found in Test Tools menu.

The HTTP Interface Test Tool window will then open, allowing the user to test that the HTTP interface has been successfully configured.

HTTPS Interface - Setup

To integrate the HTTP(S) Interface into the OS software, it will need to be available as a service via the System Install Scheduler. For information on how to install an additional process, refer to section 2.

In terms of functionality, HTTPS can provide the same functionality as HTTP with the additional benefit of sending secure messages encrypted using Transport Layer Security.

To configure this additional functionality in the OS software, a certificate needs to be imported into the keystore on the PU. This certificate needs to be provided by the client in the *.pem format.

The following steps how to generate a self-signed certificate from the CU to allow testing of the HTTPS interface via the HTTP test tool. For an operational system the final steps where the certificate is imported onto the PU are the only necessary steps.

1. Generate a self-signed certificate to enable the HTTPS interface:

• Within Windows ProgramFiles, navigate to \OptaSense6.x\bin\utilities and run the script “generateHTTPSInterfaceTestCert.bat”.

2. Complete required fields when directed:

   1. The hostname of CU.
   2. IP Address of CU.

A file is created in C:\Users\Admin\AppData\Local\Temp\httpsTest.keystore. It is recommended this is copied to a safe location. This certificate will act as the self-signed certificate to load into the HTTP(S) test tool on the GUI to authenticate the HTTPS test server.

3. It is now necessary to extract a *.pem certificate from the CU. This can be uploaded to the PU, which will then create a private key so secure messages can then be generated and published. Open Firefox (not all internet browsers provide the ability to view the certificate) on the CU and navigate to the IP address of the CU using the following format - https://192.168.x.x:8007/

4. Once connected, the webpage should show received ok. From here select the Firefox security shield and navigate to Connection Not Secure Arrow > More Information > View Certificate.

5. Download the certificate and save in the same location as the keystore file.

To import the client certificate start here

6. Run Windows ProgramFiles \OptaSense6.x\bin\utilities\importCertToJavaKeystoreOnPU.bat. This batch file is used to upload the pem file to the PU to complete authentication.

7. Complete the batch file by entering:

   1. The full Windows path to the pem file.
   2. IP Address of the PU
   3. OptaAdmin password to authenticate upload credentials

8. Restart the HTTP Interface process running on the PU.

If the client certificate has been imported correctly the client server should now be able to receive messages from the PU

9. On successful completion of this step, the HTTPS server tool can now be set up to provide confirmation that messages are being sent via HTTPS. Open the HTTP Interface Test Tool and navigate to the Receive from HTTP interface:

10. Select Use HTTPS checkbox and point to the Keystore file saved previously. Assuming that there are no errors with the certificate file, you should be able to start the HTTP(S) server. Select start HTTPS server button and test by sending zoned in alerts and verify the XML message data output is displayed within.

Modbus Alert Reporting Interface (Deprecated Interface)

note

The Modbus Interface is no longer avaialble for new customers. The Kalkitech Interface (using MQTT) should be used for new customers.

In a later version of Software, this interface will be removed.

Introduction

The OS6 Modbus interface is a 16-bit TCP/IP interface designed to allow the mapping of alerts and errors to discrete Modbus channels. This therefore allows the presence of an alert on the OS6 system to be notified and can be further investigated and understood via the OS6 system interface.

To present this data via a Modbus interface, the OS6 server will construct and hold an array of registers, sufficient in quantity to maintain an Alarm register and an Acknowledgment register for each channel. Depending on how many alert types are required, this can be a total of 2 registers per channel (up to 16 alert types) or 4 registers per channel (up to 32 alert types). Configuring which of these sizes is used is an adjustable setting within the OS6 system.

There are two methods of interfacing with Modbus available in OS6. The first, which is applicable for OS6.3 and above, utilises a summary method of publishing alarms. This method is the simplest of the two methods, where alarm information will be published, but cannot receive any acknowledgement information back from the Modbus system. Modbus Alert Reporting is an interface created specifically for one of our customers and allows the user to receive Modbus information based on channel numbers and alert types however, this would need to setup specifically for each new customer request. Both interfaces can be run at once however it is essential that they are not run off the same port or to the same source IP address. Please also consult the Modbus interface specification for further information.

Adding the Interface

The Modbus interface is attached to the system as an external process on the System Install Scheduler. For information on the manipulation of the Install Scheduler please consult Module 12

Configuring Modbus

In the setup wizard found in the OS6 software, the following can be configured:

• Connection Settings:
  • IP address of card connected to third party system
  • Modbus Interface port
• Modbus Configuration Settings:
  • Starting register value
  • Number of registers per channel (2 for Summary Reporting or 2/4 for Alert reporting)
• Mapping of Alert types to Register flags
• Mapping of Devices

This section will describe the steps involved in configuring the above. For more information on the config wizard please consult OS6 Manual Module 7.

To launch the setup wizard, click on the icon found in the ‘engineering’ tab in the OS6 software.

Modbus Summary Reporting – General Modbus

With the setup wizard launched, select the ‘interfaces’ tab from the menu found on the left-hand side.

With the interfaces window open, scroll down to the ‘Modbus Details Interface’ option and select this option.

In this window, the connection settings can be configured. The IP address will be predetermined before installation but can also be found in the network diagram. As a default, the port will be the IANA well-known port of 502. All device requests will be passed through this port to the ‘virtual’ devices. In this window, the user can see which numbers the Modbus alerts are mapped to. As the System status uses the address 40001, the starting register address is typically 40002. The system will either use registers per channel (up to 16 alert types).

Testing Modbus Summary Reporting

To test the MODBUS Summary interface, a polling device should be attached to the network that has connectivity to the IP address specified above.

The remainder of this document contains reference to the use of the MODBUS Poll tool that is available from MODBUS Tools. This tool simulates the continual polling of the MODBUS register entries on the given port.

Open the Modbus poll tool and under the setup menu, select ‘Read/Write’ definitions.

1. Once opened, you should be displayed with the following window:

• The slave ID would be what is configured in the wizard Modbus section (by default this is 1 and does not need to be changed unless changed in the wizard).

• The function should be chosen to be “03 Read Holding Registers”.

• The address should always start from 0.

• The quantity field is how many registers Modbus poll should read. This number is ‘(n * 4) + 4’ where ‘n’ is the number of detectors being used.

• In the rows panel, always select ‘Fit to Quantity’ and select Apply then OK.

• Open the ‘connection setup’ window. This is accessed through the connection menu.



1. Once opened, you should be displayed with the following window:

• The connection should be set to Modbus TCP/IP
• The mode should be set to ASCII
• In the ‘Remote Modbus Server’ panel section, the IP address should be set to that configured in the wizard (the address of the node running the process)
• The port should be what is configured in the wizard, the default it is 502 and should not be changed unless changed in the wizard
• Once all these parameters are set, you can press OK and data should be displayed in the registries.
• To test, inject alerts into OLA and ensure the correct registries are changed.

Mapped alerts from OS6 will appear in Modbus poll software. The first register 0 is listed as -1, this denotes that the ‘System Health’ is in the red state, if the system is in a green state this will be 1. Register 1 shows the total number of all unacknowledged high alerts (10) in the system. 2 shows total medium alerts (5) and 3 shows low alerts (2). The next register, 4, shows the map no 9 (Alert Type) which corresponds to vehicle. The next 3 registers are the number of high, medium and low alerts. Register 8 is the map number to head the next 4 registers and so on and so on.

Note: Right Image above; The first 4 registers are always taken by: System Health. Total number of high system alerts. Total number of medium system alerts. Total number of low system alerts. The mapped numbers that follow will appear as per detectors order.

Modbus Details Reporting – Client Specific

With the setup wizard launched, select the ‘interfaces’ tab from the menu found on the left-hand side, clicking ‘Modbus Alert Reporting - Alerts’ will bring up the Modbus Threat Mapping section.

This section allows the configuration to output or block the individual alert types from being posted via the Modbus interface. To add a new alert, simply click ‘Add’ found at the bottom of this window. Likewise, to remove an alert from being publish, click ‘Remove’.

Once the threat mapping is complete, click ‘Next Section’ to go to the ‘Modbus Device Configuration’ window.

The Modbus interface utilises ‘devices’ as a method of mapping alerts. These devices will not exist as separate electronic devices but are akin to predefined database ‘Views’ allowing the interface to request a segment of the fibre data rather than having to interpret the full data set.

Each device can be set with a ‘Device ID’ which can be entered in this section. Also, this section where the start and end channel for the channel range to be associated with this device can be entered. Please note, the channel range cannot exceed 63 channels.

Error messages will be displayed if inappropriate integers are applied throughout the setup process.

Testing Modbus Details Reporting

Once the OS6 GUI has been restarted, check to see if the Modbus interface is running by starting the Modbus Details Test under the Test Tools menu

With the Modbus Test Tool launched, the launch window will open to the ‘Modbus Alerts’ tab. This tab is where the Modbus Test Tool can be started, and once started, alerts can be observed.

Prior to starting the tool, it is worthwhile reviewing the other tabs to ensure they are configured correctly for the tool to work.

The Device Config tab displays how the Modbus devices are configured. It is vital that this window matches the settings set in the ‘Modbus Device Configuration’ window in the setup wizard.

The Threat Config tab displays which alert types are mapped in the Modbus register. No settings need to be changed in this tab.

The final tab in the Modbus Test Tool is the General Config tab. In this tab, the following needs the entered:

• Port: 502 (default)
• Modbus IP Address: The IP address of the node running Modbus
• Modbus Poll Period (ms): 2000 (default)
• Starting register: Must match value entered in ‘Modbus Details Interface’ in setup wizard
• Registers per Channel: Must match value entered in ‘Modbus Details Interface’ in setup wizard

With the Test Tool fully configured, by clicking ‘start’ in the Modbus Alert tab will launch the tool. If successfully configured, OS6 system alerts will now start to appear in the Modbus Alerts tote. Verification of the test can be done by acknowledging an alert in the tool and comparing with the OS6 system that this alert has been acknowledged.

Luna Cloud Service

Adding the Interface

The Connect Agent Interface is attached to the system as an external process on the System Install Scheduler. For information on the manipulation of the Install Scheduler please consult Module 12.

Introduction

The OS6 Connect Agent Interface allows system health data to be sent to the cloud-based health monitoring system: LUNA CLOUD SERVICE. This system can form part of a remote support offering to the customer (managed by Luna or the customer).

This cloud-based system allows remote monitoring of an OS6 without the need to login into the OS6 System directly. This cloud-based system also allows emails to be sent to named users based on Health rules of the OS6 System (e.g. Failed communication to an IU)

Data sent to Connect

By default, OS6 only forwards System Health data to ‘Connect’. If requested, information such as alert information or geographical positions (Alerts, Fibre Route, Assets etc) can also be forwarded.

Data Hierarchy

Below highlights the data hierarchy sent to Connect:

Below highlights the data that is within the Node Asset:

Each node will have a pre-determined rule which controls if the node is in a ‘Bad’ or ‘Good’ state on Connect. This rule uses the same data that System Health uses to determine a nodes health.

Below highlights the data that is within the IU Asset:

An IU heartbeat has been added which dictates to Connect if the IU is ‘working’. This heartbeat is determined by the last the system received sensor data for that IU.

Below highlights the data that is within a Process (Input Processing, Algorithms etc) Asset:

Each process will have a pre-determined rule which controls if the process is in a ‘Bad’ or ‘Good’ state on Connect. This rule uses the same data that System Health uses to determine a processes health.

Configure the Connect agent

To connect the agent to Connect, open the ‘Connect Agent Configuration’ section within the Wizard.

Below details the settings that need to be entered to configure Connect:

• Agent Host IP: This is the IP Address of the CU where the agent will run and forward data to Connect. This selected CU must have:

  • OS6 running
  • Connection to the internet

• URL: This is the full URL of the ‘Luna Cloud Service’. The URL is unique for each customer/system. The URL should be requested from Luna Support each time the agent is being setup for a new customer/system.

• Username/Password: These login credentials the agent will use will be unique for each customer/system. These details should be requested from Luna Support at the same time a request for the URL is made.

• Upload System Logs: true if the system logs should be uploaded. For large systems or systems with a slow internet link may require this value to be turned off. If unsure, please contact Luna Support.

• Status Publish Time: This dictates how frequently data is uploaded. In most cases this can be left as the default (60 Seconds), but for large systems or systems with a slow internet link it may require this value to be increased. If unsure, please contact Luna Support.

Once all details have been entered, the connection can be tested from the CU.

If the details are correct and there is a valid connection, a success result will be returned. The details can be saved which will automatically reload the agent with the newest details.

After a couple of minutes, a web-browser should be opened to confirm the agent is sending data as expected. The configured URL is what would be entered in on the browser, however the configured username/password is not valid for login to the Browser. A separate login will need to be requested from Luna Support.

If the customer is going to provide a ‘proxy’ for internet access, then complete the ‘Proxy Setup’ Tab with details which the customer will provide

MQTT Interface

Adding the Interface

The MQTT Interface is attached to the system as an external process on the System Install Scheduler. For information on the manipulation of the Install Scheduler please consult Module 12.

Introduction

MQTT is a lightweight, publish-subscribe, machine to machine network protocol for message queue/message queuing service. The protocol defines two types of network entities: a message broker and a number of clients. An MQTT broker is a server that receives all messages from the clients and then routes the messages to the appropriate destination clients. An MQTT client is any device (from a micro controller up to a fully-fledged server) that runs an MQTT library and connects to an MQTT broker over a network.

OS6 can connect to an existing MQTT broker to integrate with a customer's existing system or run it's own as part of the MQTT Interface application. The MQTT interface is now the preferred way to interface OS6 with a Kalkitech SYNC 2000 protocol converter. There is no longer any need to use the modbus or OPC-UA interfaces with a SYNC 2000

Testing and demonstrating the OS6 MQTT interface can be achieved with open source test tools. MQTTX is one such tool, but there are many others

Configure the MQTT Interfrace

Below details the settings that need to be entered to configure MQTT

• Use built-in broker: Select to start an MQTT broker on the PU running the MQTT Interface

• MQTT Broker Host: The IP address of the host running an existing MQTT broker

• MQTT Broker Port: The port to use for the broker, either to listen or or to connect to

• Username/Password: Credentials for the MQTT broker

Published Topics

The following describes the data and topics published by the MQTT Interface

optasense/systemHealth

Overall health of the system along with any current user notifications

Publishes the current system health state every five seconds

{
    "systemHealthy": false,
    "userNotifications": [
    {
      "associatedNotification": {
        "typeKey": "IU_Disconnected",
        "typeMessage": "IU's Disconnected",
        "severity": 4
      },
      "ip": "192.168.100.1",
      "process": {
        "name": "Input_Processing_Name",
        "instance": 0,
        "fibreIDs": {
          "DAS": [
            0
          ]
        }
      },
      "activeDurationMillis": 32129
    }
  ]
}

optasense/alertCount

A count of the total numbers of alerts in the system, categorised by level (high / medium / low) and alert type, also includes an overall total for all alert types

Published with the latest alert counts every five seconds

{
  "Threat.Type.Activity": {
    "high": 12,
    "medium": 3,
    "low": 1
  },
  "Threat.Type.Digging": {
    "high": 5,
    "medium": 2,
    "low": 1
  },
  "Total Alert Count": {
    "high": 17,
    "medium": 5,
    "low": 2
  }
}

optasense/alertDetails

The most recent update to every alert in the system. On a large system this may be a very busy topic

Published whenever an alert is updated (created / updated / acknowledged / dismissed / completed)

{
  "message": {
    "messageHeader": {
      "messageType": 0,
      "messageNumber": 0,
      "messageTime": 0,
      "messageVersion": 0,
      "cpsNumber": 0,
      "messageTimeMicroSeconds": 0,
      "sampleSyncCount": 0,
      "iqFlags": 0
    },
    "persistentID": "64b6e8bf-b3cb-498c-944e-a6923e1fe377",
    "fibreType": 0,
    "source": "Manual_Digging_Detector",
    "sourceAreaName": "",
    "startTime": 1731335585556,
    "endTime": 1731335585556,
    "startResPoint": 23,
    "centreResPoint": 23,
    "endResPoint": 23,
    "startLatitude": 50.68197150680753,
    "startLongitude": -2.2580242303319866,
    "centreLatitude": 50.68197150680753,
    "centreLongitude": -2.2580242303319866,
    "endLatitude": 50.68197150680753,
    "endLongitude": -2.2580242303319866,
    "threatLevel": 4,
    "zoneName": "",
    "state": 1,
    "individualState": 0,
    "activeState": 1,
    "weighting": 0,
    "weighting_info": "",
    "speed": 0,
    "threatTypeSettingsString": "Threat.Type.Digging",
    "userName": "",
    "userComment": "",
    "externalType": "",
    "externalId": "",
    "initialCentreAlertLatitude": 50.68197150680753,
    "initialCentreAlertLongitude": -2.2580242303319866,
    "redTime": 0,
    "initialStartResPoint": 23,
    "initialCentreResPoint": 23,
    "initialEndResPoint": 23,
    "minResPoint": 0,
    "maxResPoint": 0,
    "customTextField": "",
    "assetScaleID": "Fibre_Channel",
    "updateTime": 1731335585562,
    "stateUpdateTime": 1731335585562,
    "timeToArrival": 0,
    "subordinate": false,
    "subordinates": []
  },
  "offset": 0
}

Subscribed Topics

As well as publishing information to external systems the MQTT interface subscribes to a topic and can manage alerts within OS6 via commands on that topic

optasense/alertOperations

Acknowledge all current alerts

{
  "operation": "acknowledgeAll"
}

Dismiss all current alerts

{
  "operation": "dismissAll"
}

Acknowledge a specific alert

{
  "operation": "acknowledge",
  "persistentID": "64b6e8bf-b3cb-498c-944e-a6923e1fe377"
}

Dismiss a specific alert

{
  "operation": "dismiss",
  "persistentID": "64b6e8bf-b3cb-498c-944e-a6923e1fe377"
}

Charon 4 DTS Interface

Charon4REST Service Installation

The Charon4Rest service must be installed and configured on the same PC running Charon 4. Credentials for the service must be created before OS6 will be able to connect, these credentials are unique to the REST service and do not need to match Charon 4 users.

See LIOS documentation for further details.

Adding the OS6 Interface

The Charon 4 Interface is attached to the system as an additional processing block on the System Install Scheduler. For information on the manipulation of the Install Scheduler please consult Module 12.

• Open the Install Scheduler, click on the + button and select “Modify Interfaces & Processing Chain”

• Select a node then right click on it and select “Add DTS processing Block” from the options



• Configure the DTS processing block with the required number of fibres

• Click "Add Block

• Click "Apply Changes"

Configuring the Charon 4 connection

Once the system has been updated, open the Operator Interface

• Open the "Charon 4 Connection Configuration" dialog

• Click the "Add Charon Connection" button

•

• Configure the Charon 4 connection IP address and credentials (ensure all fields match exactly the values used in Charon 4)

  • Add OTS controllers and fibres as required

  • Add structures if required

• Click "OK" and "Finish" buttons to reload the system

The map window can now be used to configure the fibre route of the DTS fibres and structures in the same way that it can for DAS fibres.

Alert Injector

To allow alerts to be created without an Interrogator Unit (Sensor), an Alert Injector has been provided. This will create alerts for testing purposes into the OS6 System.

note

Alert Injector should only be used for test purposes once set up this should be connected to an IU and tested with real data/alerts.

• The Alert Injector can be accessed via the Test Tools menu. Please note, however, that this feature should be added to the OptaAdmin role and log in as Super User



• There are two modes, Performance mode and Inject Mode.

• Performance mode will inject random alerts. The alert types and levels can be selected from the options displayed. The total number of alerts to inject can also be entered. After all selections have been made, press inject to start displaying the alerts on the screen. Random OPSs will be used for this type of test along the whole installation. A range of time can also be selected to inject the alert randomly.

• Inject Mode will allow the user to select specific alerts with the desired alert level on a selected OPS and a specific channel. However, as with the performance mode, these can be set to random. It will then inject those alerts with the desired fixed values for testing purposes.

Confirming Alerts created in OS6

To view the High Alert List, select Alert List from the Live Analysis menu. For Medium and Low alerts, select the Pre Alert List.

The Alerts can be selected also from the map window on the right alert pane as shown below:

As the unique alerts are inserted into the database, they will appear on the alert status panel on the right-hand side of the map window, as shown in the image below:

For updated alerts the end time will automatically update as they are generated.

Please note that only ‘High’ level alerts will be displayed in the Alert List.

Low & Medium Alerts will be displayed on the Pre Alert List.
